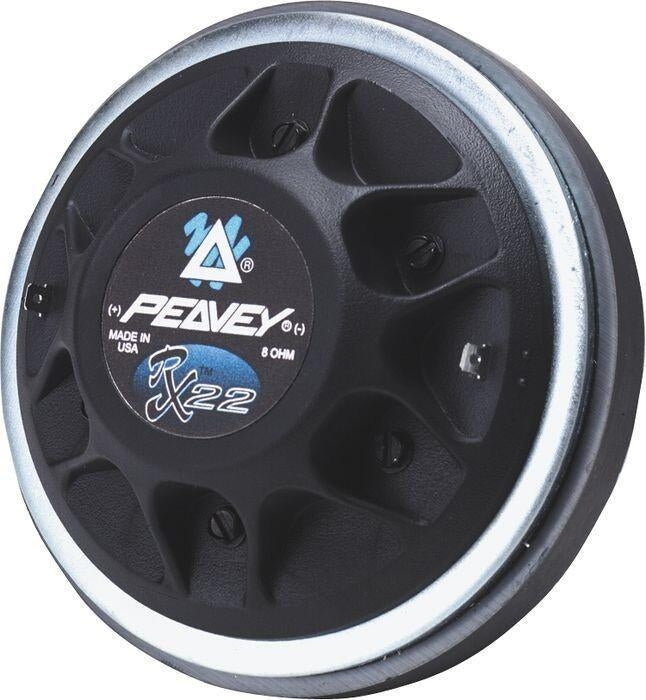

RX 22 HF Driver
Price Match

Shop By Brand




RX 22 HF Driver

  • £18500


We strongly recommend that you spare parts fitted by a qualified guitar technician, electrical service engineer or your local music store.

All the information you may need is below:

Product Type: Driver Magnets

Peavey Part Number: 00479860

Product It Fits: DJS 5, DJS4, Elements 110M 105 X 60RT, Elements 110M 60 X 40RT, Elements 112C 105 X 60RT, Elements 112C 60 X 40RT, Elements 112M 60 X 40RT, Elements 112M 105 X 60RT, Elements 115C 115 X 60RT, Elements 115C 60 X 40RT, EU 112D, EU 112M, EU 115D, Impulse 1012 4 Ohm, Impulse 1012P, Impulse 1015 4 Ohm, Impulse 1015 8 Ohm, QW 3, QW 3F, SP 8, SP112MX, SP115MX Impulse 1015P, SP12M, SP15M, SP2, SP2X, SP3, SP3X, SP4, SP4X, SP5, SP5X, SP5XL, SP6, SP6X, TLS 6X, Impulse 1012 8 Ohm

Sensitivity: 111 dB / 1W 1m On-axis on 90 degree H x 45 degree V Horn

Voice Coil Cooling: Ferrofluid

Net Weight: 5 lbs / 6 oz

Throat Parameter: .875" / 22mm

Nominal Impedance: 8 Ohms

Minimal Impedance: 5.1 Ohms

DC Resistance: 4.7 Ohms

Power Capacity 1Khz - 20Khz: 1000 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1200 Hz at 12 dB / Octave

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: 5.250" (133.3mm) diameter x 3.05" (77.4mm) depth

Horn Coupling Diameter: 7/8: (22.2mm)

Horn Coupling Threads: Standard 1 3/8" - 18"

Shipping Weight: 6 lbs 5.5 oz

Diaphragm Kit: 452400
